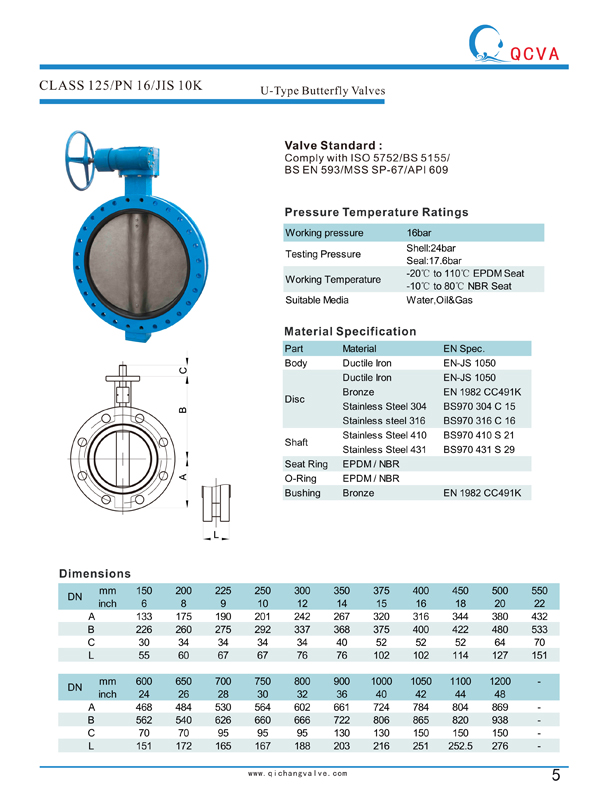

U-Type Water Butterfly Valve
Soft Seat Concentric design Butterfly Valve. Zero leaking. Several kinds of material can be Chosen.
TECHNICAL DATA
Valve Standard:
MSS SP-67
API 609 Category A
BS EN593/BS5155
Nominal diameter:
6"-64"/DN150-DN1600
Working pressure:
10Bar/16Bar
10Bar/16Bar
Face-to-face:
API 609 Table 1
ISO 5752 Series 20
EN 558 Series 20 (DIN 3202 T3 K1)
BS 5155 Series 4
Flange accommodation:
ANSI B16.1 Class125/150
AWWA C207
MSS SP44 Class150
DIN 2501 PN6/10/16
EN1092-2 PN6/10/16
BS10 Table D/E
EN1092-2 PN6/10/16
BS10 Table D/E
JIS B2220 5K/10K/16K
AS4087 PN14/16
Top Flange:
ISO5211
Tightness check:
API 598
ISO 5208,
EN12226-2
